Setup & Install ODXAIMIn this lesson, we setup and install ODXAIM to maintain indexes. The environment for this example is as follows:
Although the database platform for this lesson is SQL Server, and the operating system is Windows, the same steps can be used to install ODXAIM on any other supported database (except flat files) or operating system.. Before we begin, the following prerequisites must be met.
If the index installation changes after the ODXAIM transaction tables and triggers have been installed, it will be necessary to complete the setup step again.
Step 1 - Create a Configuration File (Optional)A configuration file is required ONLY when installing ODXAIM as a Windows service, but can be used for all installations. Examples of both, with and without a configuration file, will be shown for all steps. Skip to step 2 if you do not wish to use a configuration file. A sample ODXAIM configuration file is included with the OMNIDEX server software installation. It is located in the OMNIDEX_HOME/bin directory and is named odxaim.cfg. Locate this file and make a copy of it for editing. For this example, we've named the copy odxaim_ordssv.cfg. Move the odxaim_ordssv.cfg to the same location as the Omnidex environment catalog. This is not a requirement but is recommended for simplicity. For this example, we'll move the file to c:\DOCSAMPLES\orders\ssv. Open odxaim_ordssv.cfg with notepad or some other
text editor. In the section labeled [General],
you will find all of the settings used by ODXAIM to monitor a database.
The first setting is EnvironmentFile. Change this
setting to point to the OMNIDEX environment catalog using the appropriate
operating system syntax. For this example, the setting will be changed
as follows: The sample configuration file that we copied has examples of settings for various platforms. Lines preceded with a ; (semi-colon) are commented out. You can remove the comment character to use and modify existing settings and add a comment character to other lines, as necessary. Change any additional settings as desired or leave them as is to accept the defaults. We will accept all of the defaults for this lesson.
Step 2 - Generate the SQL Script & Environment SourceIn this step, we will generate the SQL script for the transaction tables and triggers. We will also generate the environment source entry in the same step, although this can be done separately later. See ODXAIM for more information.Before generating the SQL script file, you must:

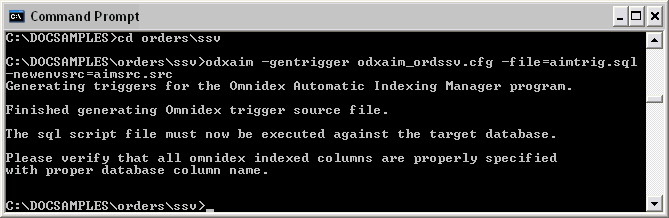

Open a DOS session and change directories to the same location as the
environment file. Run ODXAIM, as follows > odxaim -gentrigger -env=orders.env -file=aimtrig.sql -newenvsrc=aimsrc.src with a configuration file: > odxaim -gentrigger odxaim_ordssv.cfg -file=aimtrig.sql -newenvsrc=aimsrc.src The -gentrigger directive instructs odxaim to generate triggers for the orders.env environment, or the environment defined in odxaim_ordssv.cfg. The -file directive instructs odxaim to output the trigger script to aimtrig.sql. The -newenvsrc directive instructs odxaim to also generate the environment source entries for the odxaim transaction tables, and to output that source to aimsrc.src.
Step 3 - Verify the SQL Script and Install the TriggersThe SQL scripts are designed to be used "out of the box". However, since the triggers are installed directly into the native database tables, it may be necessary to manually edit and/or install them, to prevent existing triggers from being discarded or overwritten. You should also verify that there are no naming conflicts with existing tables and the ODXAIM transaction tables. The script file can be opened and edited with the text editor of your choice. To install the triggers, execute the SQL script using an appropriate RDBMS tool, the use of which is beyond the scope of this tutorial.
Step 4 - Verify and Add the Environment Source Entries to the Environment FileODXAIM generates a request table, ODXAIM_ODXREQUESTS, a log table, ODXAIM_ODXLOG, and a table-specific transaction table for each native table with indexes that will be maintained through ODXAIM. The table-specific transaction tables should match the environment source entries for the native tables exactly, with the exception of several extra columns necessary to identify each transaction for ODXAIM. Verify that these entries are correct, then add them to the existing environment source file. To do this, open the OMNIDEX environment source file , orders.src in this case, with any text editor, like Notepad or Wordpad. Also open the output file containing the environment source file entries generated by ODXAIM, aimsrc.src, in this case. Copy and paste the entries into the original source file, after all of
the table entries and before the index entries. Recompile the environment file and reinstall the indexes. It is not necessary to rebuild the indexes at this time.

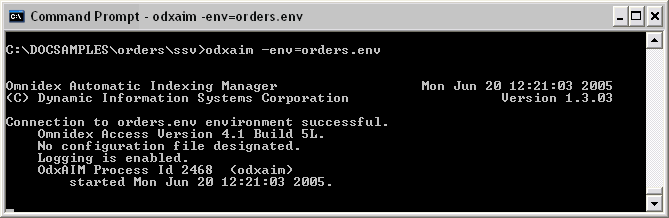

Step 5 - Start the ODXAIM Monitoring ProcessThe final step is to star the ODXAIM Monitoring Process. From a DOS prompt, run ODXAIM, passing it the environment catalog or the configuration file name. OR This will start an interactive monitoring process in the current window.
Step 6 - Test the InstallationTo test the installation, we'll add a record using a database tool, then select that record using the Omnidex tool, ODXSQL. If ODXSQL returns the correct record using an index, the indexes were updated successfully. For this example, we'll execute the following statement in Query Analyzer: insert into customers (customer_no, company, contact) values (1001, 'Fictitious Company Name', 'Dolores Doe') If this insert was successful, ODXAIM should have updated the indexes. Run ODXSQL and connect to the environment. > odxsql orders Select the new record using a keyword from the new record. > select customer_no, company, contact from customers where company='fictitious' If the record is returned, the indexes were correctly updated by ODXAIM. CONGRATULATIONS! You've successfully installed ODXAIM!
|
|
